Automatic Linear Filling Machines

Product

Automatic Linear Filling Machines

Type

Servo veya Piston

Capacity

1200 - 5000 adet/saat

Dimensions

1800 x 1200 x 2100 mm

Weight

1200

Description
Video
Gallery

Description

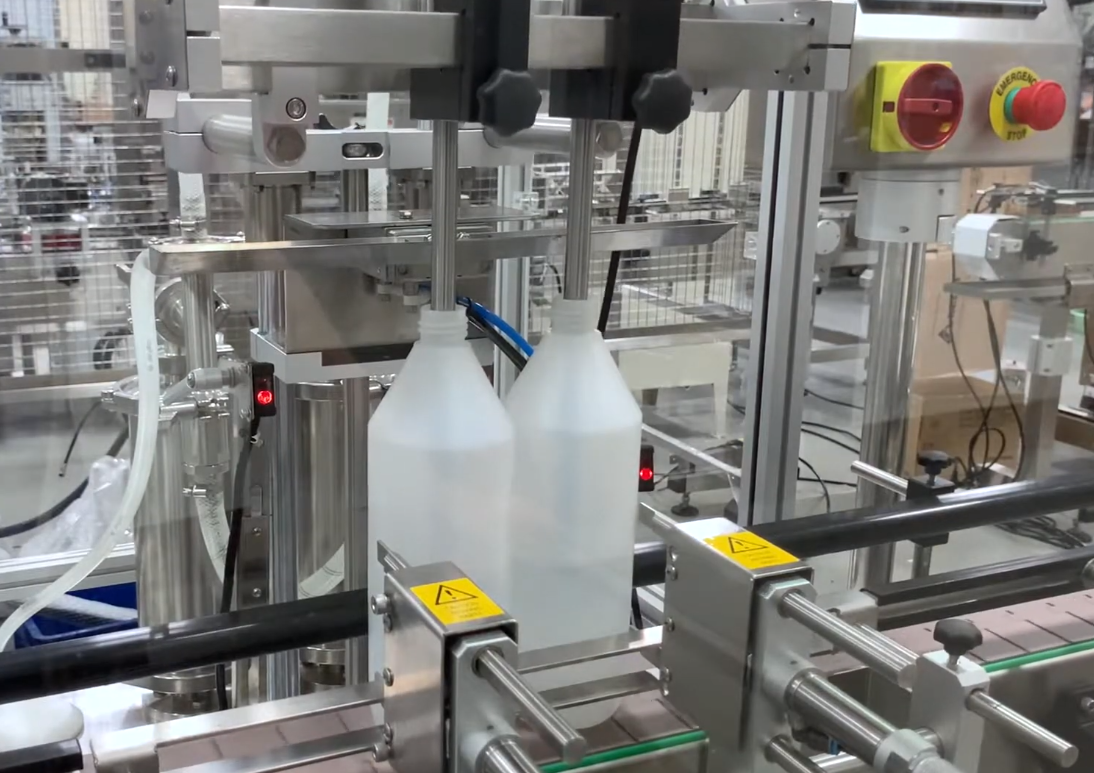

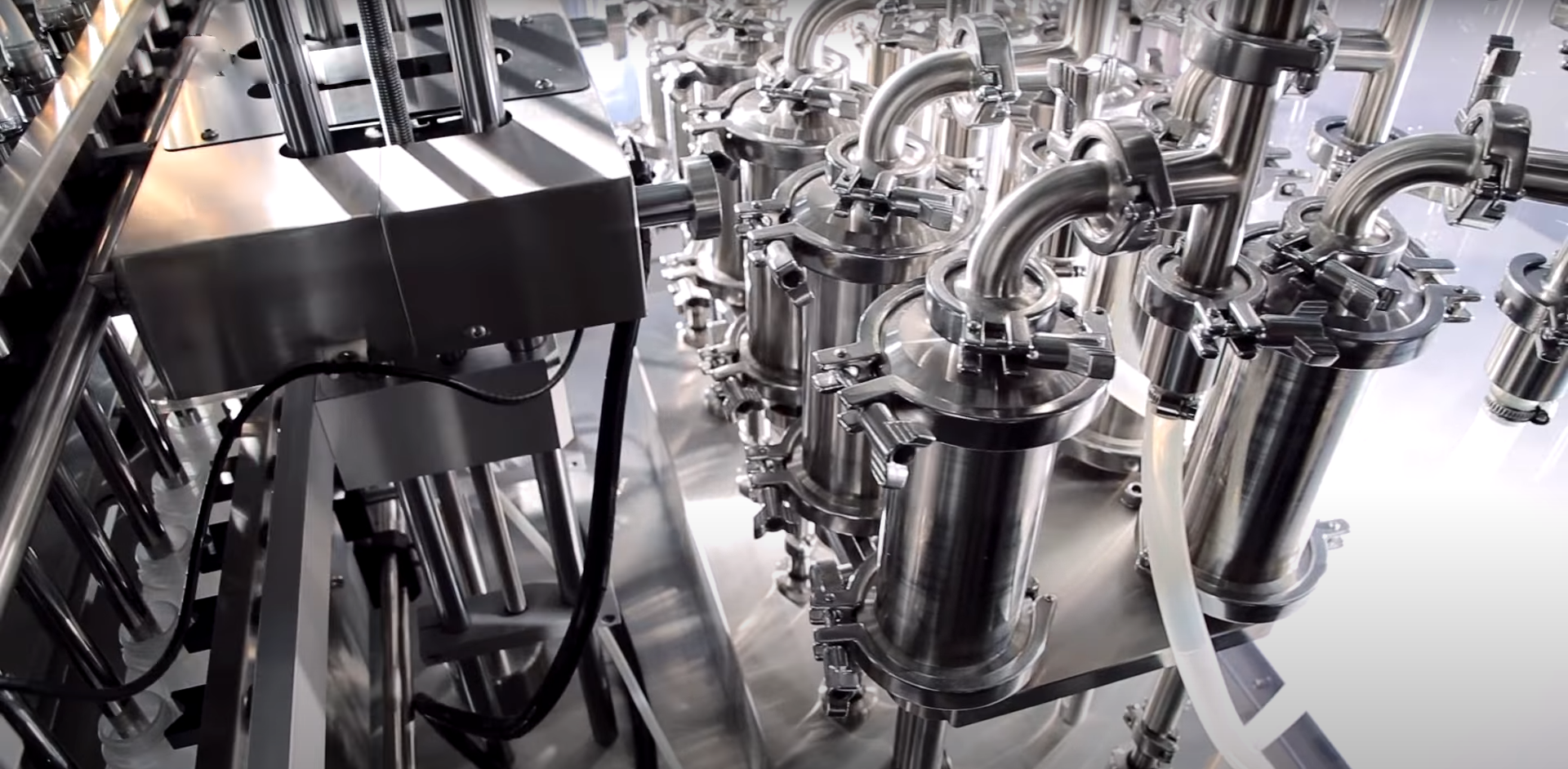

KOBEMAK fully automatic linear filling machines; perform filling and sealing operations in synchronization at a minimum capacity of 1500 bottles (or containers) per hour and higher capacities for liquid or particulate products such as fruit juice, vegetable oil, peanut butter, tomato paste, cosmetics, etc. The machine models and filling-capping systems vary depending on the product to be filled, packaging material (PET, glass, carton), and cap type.

The design principle of our fully automatic machines prioritizes efficiency, aiming for the end user to use the machine at full capacity for many years without experiencing performance degradation. All models are designed and manufactured with a focus on user-friendliness, packaging and product versatility, easy maintenance, and cleaning.

2 NOZZLES

Model	Bottle Sizes	Capacity ( per hour )	Operation
PVD200-2 PA PDD200-2 PA	Min. 5 Max. 200ml	1600	Pnömatik
PVD1000-2 PA PDD1000-2 PA	Min. 100 Max. 1000ml	1500	Pnömatik
PVD2000-2 PA PDD2000-2 PA	Min. 200 Max. 2000ml	1200	Pnömatik
PVD5000-2 PA PDD5000-2 PA	Min. 1000 Max. 5000ml	840	Pnömatik

4 NOZZLES

Model	Bottle Sizes	Capacity ( per hour )	Operation
PVD200-4 PA PDD200-4 PA	5-200ml	3200	Pnömatik
PVD1000-4 PA PDD1000-4 PA	100-1000ml	2500	Pnömatik
SVD1000-4 SA SDD1000-4 SA	100-1000ml	3000	Servo-motor
SVD2000-4 SA SDD2000-4 SA	200-2000ml	2600	Servo-motor
SVD5000-4 SA SDD5000-4 SA	1000-5000ml	2000	Servo-motor

6 NOZZLES

Model	Bottle Sizes	Capacity ( per hour )	Operation
PVD200-6 PA PDD200-6 PA	5-200ml	4800	Pnömatik
SVD1000-6 SA SDD1000-6 SA	100-1000ml	3600	Servomotor
SVD2000-6 SA SDD2000-6 SA	200-2000ml	2880	Servomotor

8 NOZZLES

Model	Bottle Sizes	Capacity ( per hour )	Operation
PVD200-8 PA PDD200-8 PA	5-200ml	4800	Pnömatik
SVD1000-8 SA SDD1000-8 SA	100-1000ml	6000	Servomotor
SVD2000-8 SA SDD2000-8 SA	200-2000ml	5200	Servomotor
