Product

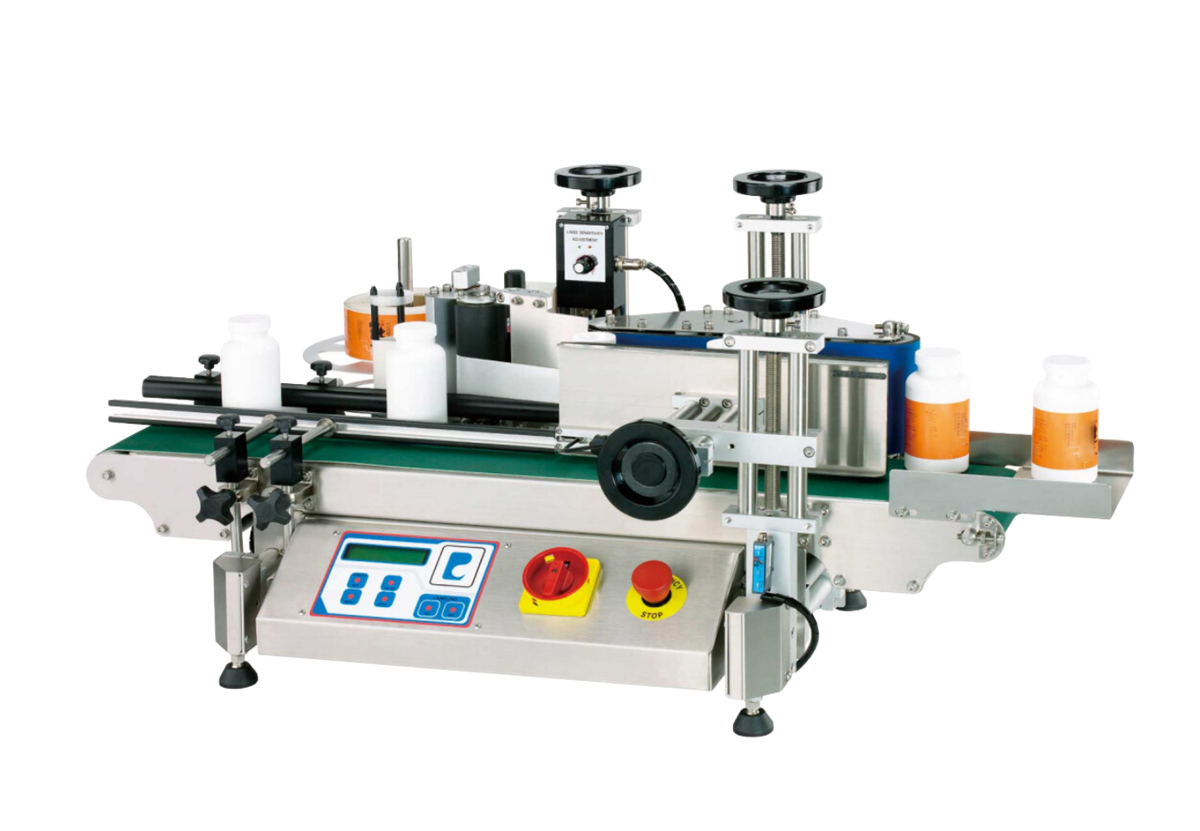

Portable Wrap-Around Labelling Machine
Type
ELF-20
Capacity
16 m/min
Energy Consumption
460VA
Dimensions
1101 X 880 X 422 mm
Weight
75
Description

The label count feature lets you precisely track progress at any point during the production run.

The ELF-20 features a PLC control system that maintains default settings and memory even after the machine sits idle for a long period of time. Up to five settings can be stored for future use, so you don’t have to waste time re-entering the necessary information.

It’s easy to upgrade the ELF-20 to activate hot-foil printer controls. This integrated feature simplifies label customization and allows the hot-foil printer to work in sync with the labeler to ensure accurate code placement.

Modular design concepts for fast and simple maintenance. Flexible enough to handle production schedule changes with simple adjustments for rapid changeover.

Stainless steel and anodized hardened aluminum alloys are employed to the structural design for a durable and stable machine.

Technicial Specifications



The ELF-20 features a PLC control system that preserves default settings and memory even after prolonged periods of inactivity. It allows for the storage of five different settings for future use, so you don't have to re-enter necessary information.

You can easily upgrade the ELF-20 to enable hot foil printing control. This integrated feature simplifies label customization and ensures the synchronization of the hot foil printing device with the labeling machine, enabling precise code placement.

Modular design concepts are employed for quick and easy maintenance, providing flexibility to swiftly accommodate changes in production schedules.

To create a durable and stable machine, stainless steel and anodized hard aluminum alloys are used.



Model ELF-20
Electrical Supply 110/ 220 VAC 50/ 60Hz Single Phase
Power Consumption 460 VA
Dispense Driver Stepper Motor
Applicator Height 120 mm
Label Size H:120 mm x L:300 mm Max.
Bottle Diameter 150 mm Max.
Conveyor Width 3~10m/min
Dispensing Speed 16 m/min. Max.
Label Roll Inner Core Dia. 76mm
Dimension 1101mm(L) X880mm (W) X422mm (H)
Net Weight Approx. 75 Kgs
